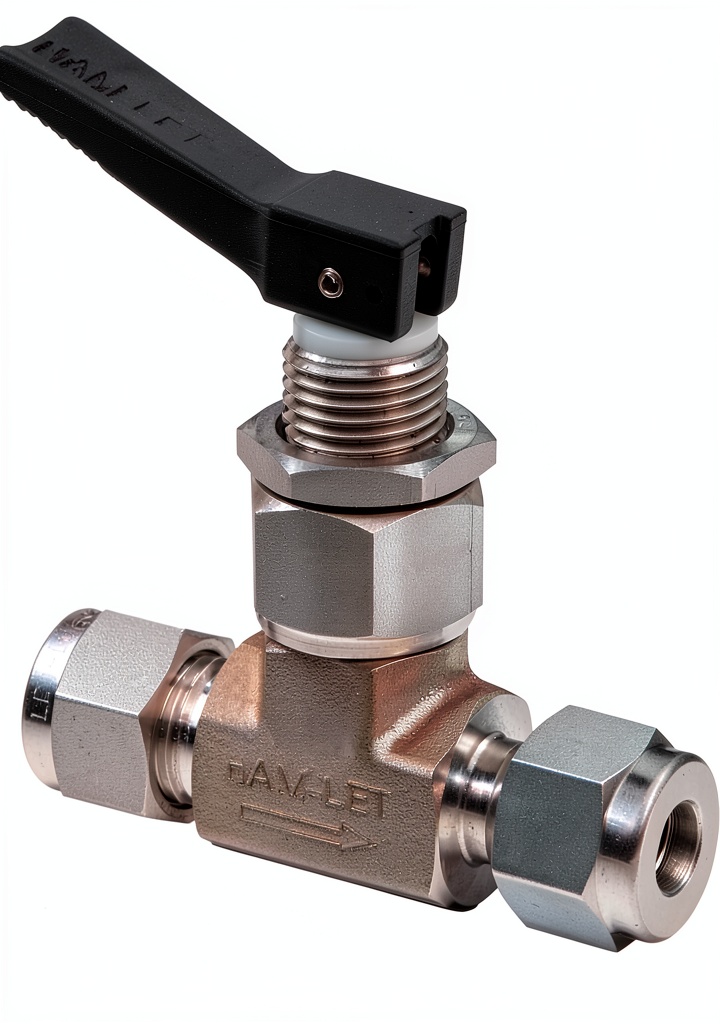

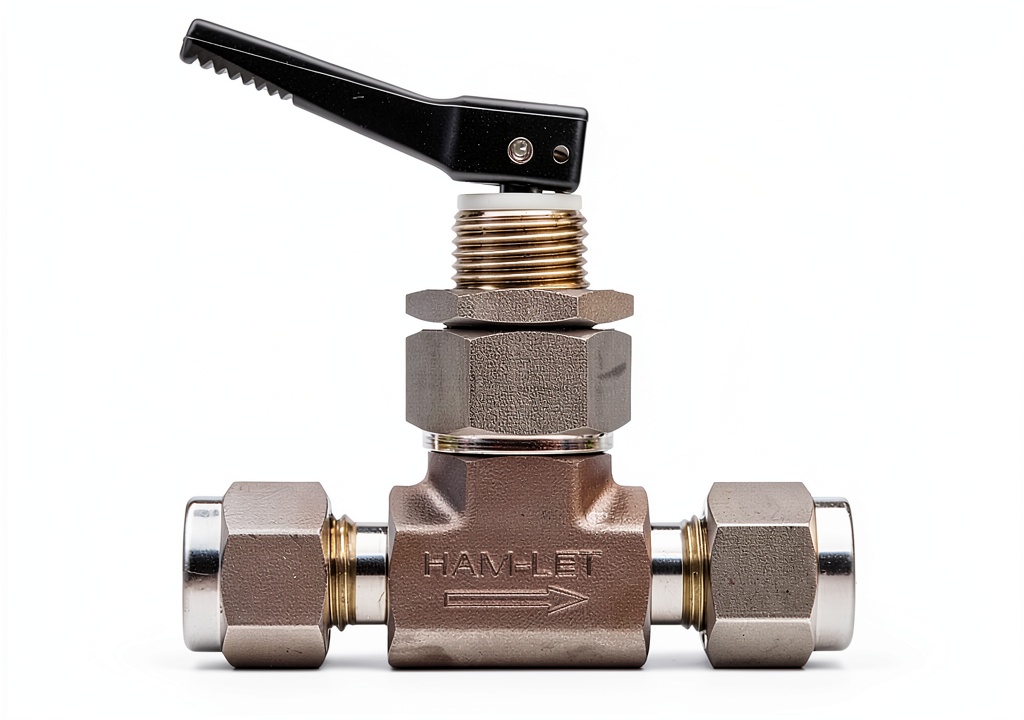

Ham-Let H1200 Stainless Steel 316 Toggle Valve 1/4″ Let-Lok Inline

Description

Product Overview

The Ham-Let H1200 Series toggle valve is engineered for demanding industrial environments where performance, durability, and ease of service are paramount. Constructed from 316 grade stainless steel, the valve provides exceptional corrosion resistance against harsh chemicals, saline water, and high‑temperature steam. Its compact, rugged housing measures just over four inches on each side, allowing it to fit into confined panels and equipment racks without sacrificing structural integrity. The integrated Let‑Lok 1/4″ fitting offers a secure, leak‑tight connection that can be installed or removed quickly, reducing downtime during maintenance cycles. With a maximum allowable working pressure (MAWP) of 300 psig at 20 °C (70 °F), the valve is suitable for a wide range of hydraulic, pneumatic, and water‑based applications. The toggle lever provides tactile feedback and a clear open‑or‑closed position, ensuring operators can make rapid adjustments with confidence. Designed for panel mounting, the valve can be positioned directly on control panels, process boards, or within modular valve assemblies, streamlining system layout and simplifying wiring. The product dimensions of 4.2 × 4.4 × 4.5 inches and a lightweight of 2.4 ounces make it easy to handle during installation while still delivering robust performance under continuous operation.

Usage

In industrial facilities, the H1200 toggle valve excels in applications such as coolant circulation, chemical dosing, and pneumatic control loops. Its stainless steel construction makes it a reliable choice for food‑processing plants, where sanitary standards demand materials that will not contaminate products. The valve’s quick on/off action is valuable in emergency shut‑off scenarios, allowing operators to isolate sections of a system within seconds. It is also well‑suited for laboratory rigs and test benches where frequent adjustments are required, thanks to the ergonomic toggle lever that reduces hand fatigue. The Let‑Lok fitting simplifies pipe connections in retrofit projects, where space constraints often limit the use of larger, bulkier fittings. Whether installed in a manufacturing line, a water treatment plant, or a remote field unit, the valve’s 300 psig rating ensures it can handle the pressure spikes common in pump start‑up and valve‑actuated flow control. The panel‑mountable design integrates seamlessly with existing control panels, reducing the need for additional brackets or mounting hardware. Overall, the H1200 provides a versatile solution for any system that demands reliable flow regulation, rapid serviceability, and long‑term corrosion resistance.

Why Choose Us

Choosing Ham‑Let means selecting a brand with over a century of experience in fluid control technology. Every H1200 valve undergoes rigorous quality testing, including pressure‑hold, leak‑rate, and torque verification, to ensure it meets or exceeds industry standards. Our manufacturing facilities employ precision CNC machining and automated welding processes that guarantee consistent dimensional accuracy and weld integrity across each unit. In addition to the robust material selection, we provide comprehensive documentation, including installation guides, CAD drawings, and compliance certificates, to assist engineers during system design and integration. Customer support is backed by a dedicated technical team that can troubleshoot installation challenges, recommend optimal fitting configurations, and provide spare‑part assistance throughout the product’s lifecycle. We also offer a limited warranty that covers material defects and workmanship, reinforcing our confidence in the valve’s durability. By partnering with Ham‑Let, you gain access to a global network of distributors and service centers, ensuring rapid parts availability and localized expertise wherever your operations are located. Our commitment to continuous improvement means that each new production batch incorporates feedback from field applications, resulting in incremental enhancements that keep the H1200 at the forefront of valve technology.

Key Features

• Premium 316 stainless steel construction delivers superior corrosion resistance for long‑term service in aggressive environments.
• Compact, rugged design fits easily into tight panel spaces while maintaining high structural strength.
• Panel‑mountable Let‑Lok 1/4″ fitting enables quick, leak‑free connections and fast maintenance turnaround.
• Quick on/off toggle lever provides clear visual feedback and reduces operator fatigue during frequent adjustments.
• Dedicated after‑sales support and warranty ensure reliable performance and peace of mind throughout the product lifespan.

FAQ

What is the maximum pressure rating for the H1200 valve?

The valve is rated for a maximum allowable working pressure of 300 psig at a temperature of 20 °C (70 °F). This rating makes it suitable for most industrial hydraulic and pneumatic applications, as well as water‑based systems that operate below this pressure threshold.

Can the Let‑Lok fitting be used with both male and female pipe threads?

Yes, the Let‑Lok fitting is designed to accommodate standard 1/4″ male and female pipe threads. It provides a secure, threaded connection that can be tightened with a standard wrench, ensuring a leak‑tight seal without the need for additional sealing compounds.

Is the valve compatible with sanitary food‑processing standards?

Absolutely. The 316 stainless steel material meets the sanitary requirements for food‑processing equipment, and the valve’s smooth interior surface minimizes the risk of bacterial buildup. It is also easy to clean and can be sterilized using common sanitation procedures.

How does the toggle lever indicate the valve position?

The toggle lever is engineered with a distinct mechanical stop at both the open and closed positions. When the lever is fully raised, the valve is open, allowing flow; when the lever is lowered, the valve is closed, stopping flow. This clear visual cue helps operators verify the valve state at a glance.

What support is available if I need installation assistance?

Ham‑Let provides technical support through a dedicated engineering hotline and online resources. Our team can guide you through the installation process, recommend best‑practice mounting techniques, and help troubleshoot any issues that arise during commissioning.
